wire rope mesh Stainless Steel Wire Cable Mesh

Top Fencing Co.Limited
Contact Now

wire rope mesh Stainless Steel Wire Cable Mesh

Brand Name : LNF-ROPE MESH

Model Number : ROPE MESH 2"

Certification : ISO

Place of Origin : AUSTRALIA

MOQ : 100sqm

Price : 12.88$/m2

Payment Terms : Western Union, MoneyGram, T/T, L/C

Supply Ability : 10000 sqm per week

Delivery Time : 5 work days

Packaging Details : Australia Standard Stillage

Material : Stainless Steel Wire,316L stainless steel,Galvanized Steel Wire

Application : Protecting Mesh,Filters,Woven Wire Mesh,decorative cable mesh

Type : Rope Mesh,Weave Wire Mesh,Reinforced Mesh,knotted mesh and ferrule mesh,stainless steel decorative wire mesh

Weave style : Plain Weave,Dutch Weave,Twill,handmade,Dutch-Twill Weave

Technique : Woven,Welded Mesh,Perforated,Weave

Feature : Corrosion Resistance,Flexible,durable,high-strength,Rust-Resistance

Wire diameter : Requirement,0.019mm to 2.32mm,0.02mm-0.5mm,1x7 7x7 7x19 or customized,1/16"

Usage : filter,Protection,decorative wire mesh,oil,aviary mesh

Hole shape : Diamond,Square Hole,Rectangular,as per requirement,round hole

Color : Silver,requirement,gold,blue or as your request,Red/yellow/green/blue;customized

Product name : SS 304 decorative wire mesh,smoking pipe filters,X-tend Kontted Type Stainless Steel Inox Cable Wire Rope Mesh,304 316 316L stainless steel bird cage wire rope/aviary mesh,Stainless Steel Wire Rope Net/Stainless Steel Cable Mesh for Bird

Width : 0.1m-8m,2-4m,Cunstomized,0.914m~1.83m,1.5m

Length : 30m,2-4m,30m per roll or as required,1-30m,30m/roll 50m/roll

Surface treatment : polishing,black/ pre-gal/hot dip gal,Mill.Coloer Finish

Sample : Available,Free

Mesh size : 8-500 mesh,20mm-160mm,as your requirement

Size : 3"*3",4"*4",1"*1",1.5"*1.5",Customized

Advantage : Superior wire,no noise,corrosion resistance,High strength,Wear-resisting

Aperture : 25-100mm,75-2800 Micron,1" 2"x2" 3"x3" 4 or customized

Contact Now

WIRE ROPE MESH (also called cable mesh) made form high quality stainless steel wire rope, with the features of extremely anti-corrosion and resistant to UV rays, has a long lifespan in the harsh environments. And its largest benefit is particular resilience and flexibility. Our rope mesh may in knotted, ferrule type, woven square, or square mesh with cruciate/cross clamps. They are all favored by fashion architects.

Cable diameter Mesh opening size Nominal break
inch mm inch mm lbs.
1/8 3.2 4x4 102x102 1600
1/8 3.2 3x3 76x76 1600
1/8 3.2 2x2 51x51 1600
3/32 2.4 4x4 102x102 920
3/32 2.4 3x3 76x76 920
3/32 2.4 2x2 51x51 920
5/64 2.0 3x3 76x76 676
5/64 2.0 2x2 51x51 676
5/64 2.0 1-1/2x 1-1/2 38x38 676
1/16 1.6 3x3 76x76 480
1/16 1.6 2x2 51x51 480
1/16 1.6 1-1/2x 1-1/2 38x38 480
1/16 1.6 1x1 25.4x25.4 480
3/64 1.2 1-1/2x 1-1/2 38x38 270
3/64 1.2 1x1 25.4x25.4 270
3/64 1.2 4/5x4/5 20x20 270

Main Featuers:

1.The mesh is clipped to the cable.

2.The hole size and diameter can be modified.
3.It can be made to customer orders and statically tested – especially suitable for facades.
4.High strength,strong toughness,free-angles curving and fold,easy for transportation and installment.
5.Anti-corrosive,resist the rust,can be repeated use.
6.Resists chewing by rodents and other pests (tensile strength approximately 100-110,000 PSI)
7.This product can bear the heavy snow and the gale very much.
8.Without toxic material,safety,environmental protection.

Product Display

wire rope mesh Stainless Steel Wire Cable Mesh

Technology

The type of stainless steel rope mesh

1. Knotted mesh is a kind of plain weave,each warp wire rope crosses alternately above and below each weft wire rope.Warp and weft wire ropes generally have the same diameter.

2.Ferruled mesh is of the same physical properties with the knotted mesh,the only difference is in the combination style,the stainless wire rope are combined by the ferrules which are made of the same grade stainless steel.

Flexible Stainless Steel Cable Mesh
Type Knotted cable mesh Ferrule cable mesh
Image wire rope mesh Stainless Steel Wire Cable Mesh wire rope mesh Stainless Steel Wire Cable Mesh
Combination Inter-woven Seamless ferrule
Hole pattern 90 degree diamond hole 60 degree diamond hole
Material SS304,316,316L,etc
Cable diameter 1 ~ 4 mm
Cable structure 7 × 7 (1.5 mm,2 mm or 2.5 mm),7 × 19 (3 mm,4 mm)
Diamond size 20 ~ 200 mm
Mesh Orientation Horizontal,Vertical
Feature Quality material,High flexibility,Anti-corrosion,Longevity,Cost effectiveness,Easy

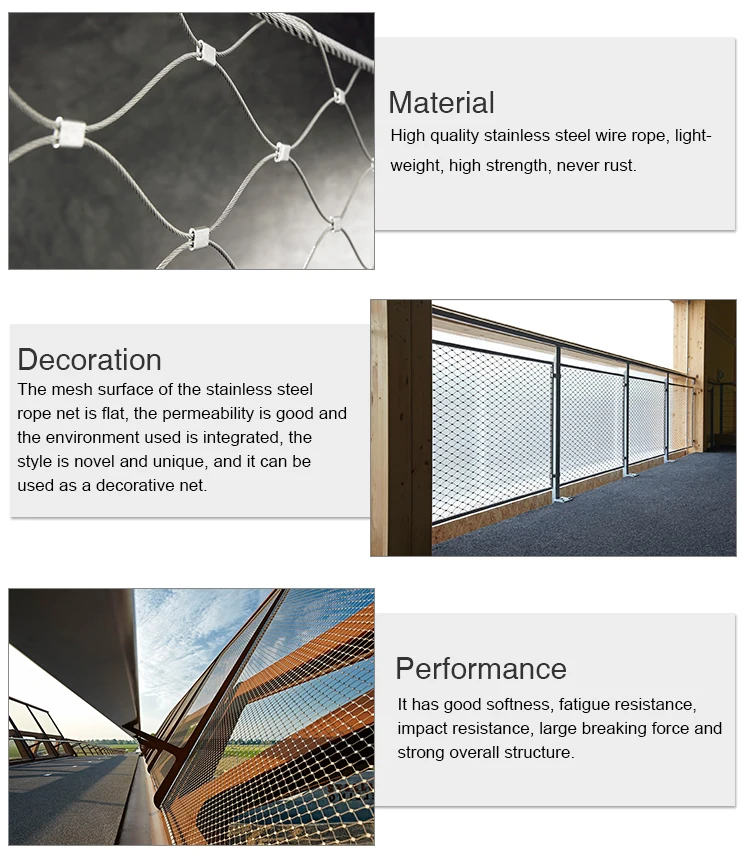

Product Features

wire rope mesh Stainless Steel Wire Cable Mesh

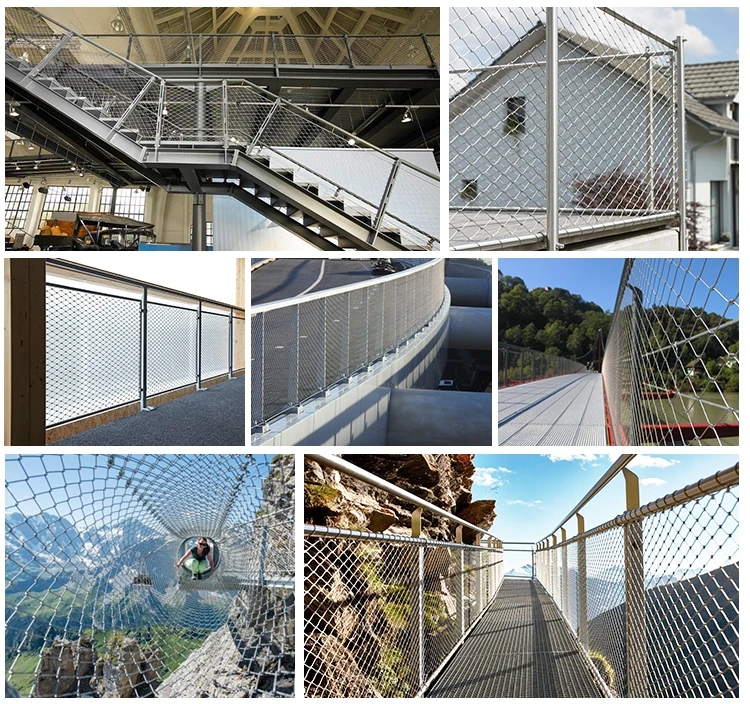

Application

Stainless steel wire rope mesh used for wide range of application: bird net, zoo, greenhouse, airport, fencing, decoration in hall, green wall series and so on. It is safe, light weight, long service life, high-strength, etc.

wire rope mesh Stainless Steel Wire Cable Mesh
