Tubular Steel Fencing Panels

Brand Name : LN Garrison Fence

Model Number : Garrison-1200mm-1500mm-1800mm-2100mm-2400mm

Certification : AS/NZS1163& AS/NZS4506-1998

Place of Origin : New Zealand And Australia Design

MOQ : 100

Price : 9.88$

Payment Terms : TT 30% deposit balance 70% at sight of done cargo

Supply Ability : 10001

Delivery Time : 7 days

Packaging Details : Metal Pallet With Plastic Jacket

Materials : Q235

Color : Black and Grey or other

Dimensions : 1800mm x 2400mm ,2100mm x 2400mm or Customized

Salt Spray Testing : Pass

Treatment : Powder Coated ,Hot Dipped Galvanized

Technical : Punch Pipes and Welding etc

Nick Name : Steel Fence ,Steel Tubular Fence ,Steel Spear Fence,Garrison Fence,ornamental steel fence

Upright Pipes : 25mm x 25mm x 1.20mm

Rails : 40mm x 40mm x 1.60mm

Post : 65mm x 65mm x 2.00mm x 3000mm

Popular : Powder Coated Stain Black

Apllication : Garden Fence, Farm Fence, Residential Fence, Highway Fence, Railway Fence, Balcony Fence, Airport Fence, Stadium Fence, Municipal Fence, Bridge Fence, Stair Fence, Air-Condition Fence

Contact Now

Tubular Steel Fencing Panels manufacturers in China; we stocked a considerable quantity of 2100mm*2400mm standard tubular fence for overseas sale market, the picket available flat and crimped spear one etc., you are welcome to supply a drawing of tubular fencing we will welding them in reality for you.

Applications Steel Tubular Fence:

  • 1. Technology Parks
  • 2. High-voltage switchyards and sub-stations
  • 3. Rail-corridors
  • 4. Protecting critical assets
  • 5. Airports
  • 6. Seaports

Advantage:

  • Aesthetically pleasing
  • Rust and corrosion-proof powder coat finish
  • Variety of powder coat finish colours
  • Prevents unauthorized access of vehicles and persons
  • Long life

Technical Information

  • Tubular Steel Fencing Panels Manufactured from pre-galvanized steel inside and outside
  • 2100mmx2400mm Heavy Duty Steel Tubular Fencing panels and posts are treated with a zinc phosphorous etching treatment before powder coating
  • Each 2100mmx2400mm Heavy Duty Steel Fencing Panel is fully welded using corrosion-resistant welds.
  • 2100mmx2400mm Heavy Duty Steel Garrison Fencing panels have six welds per steel picket which ensure the integrity and strength of the fence.
  • Finished in Black Powder Coating
  • Panel dimensions: 2.1m (H) x 2.4m (W) with 2 or 3 horizontal rails
  • 17 vertical pickets per fence panel
  • Post 80mm x 80mm square with cap and either 3m or 2.2m with a base plate,
  • Vertical pickets are 25mm square x 1.2mm in thickness x 2100mm in length punched through 40mm square x 1.6mm rails and welded with silicon bronze wire
  • The brackets are powder coated
  • Top of pickets of tubular steel fence is cut and pressed (crimped) to form spear point top

Information

Material: Hot-dipped Galvanized Steel tube
The shape of the tube section Square
Surface Treatment: Hot dipped galvanized—Zinc Phosphate—Zinc rich epoxy Powder coating – Polyester Color Powder Coating.
Zinc Steel fence Processing Cut Shot—Punching Holes—Acid washing—Rich zinc Powder coating – Polyester Color Powder Coating—Assembly – Packing
Colour Black, White, Coffee, Grey, Blue, Green etc. ( according to customers requirements)
Feature: Maintenance-free, Rust-proof, solid structure, Eco-friendly
Steel Tubular Fencing Panel Installation mode Assembling (without welding)
Accessory Security bolt& nuts, Connector, Decorative part, Gasket, Cover for a post, Baseplate, Snap Spring etc
Warranty 20 Years
Packing: Thin Film/Piece, Bubble Film/Unit inside, Woven Bag/Unit outside, Pallet.

Specification Steel Tubular Fencing Panels

Technical Data
RAILS(mm)
Horizontal tube		 PICKET (mm)
Vertical tube		 POST (mm) CARTER
SPACE (mm)
 SIZE (mm)
32*32 (0.8-2.0)
40*40*(0.8-2.0)
45*45*(0.8-2.0)
50*50*(0.8-2.0)
38*25*(0.8-2.0)		 16*16*(0.8-1.5)
19*19*(0.8-1.5)
20*20*(0.8-1.5)
25*25*(0.8-1.5)
20*40*(0.8-1.5)		 50*50*(1.2-2.0)
60*60*(1.2-2.0)
65*65*(1.2-2.0)
75*75*(1.2-2.0)
80*80*(1.2-2.0)		 110mm
116mm
120mm
124mm
130mm
Height: 1000-3000
Width: 2950

FOR MORE SPECIFICATIONS WE CAN PRODUCE ACCORDING TO CUSTOMER’S REQUIREMENTS

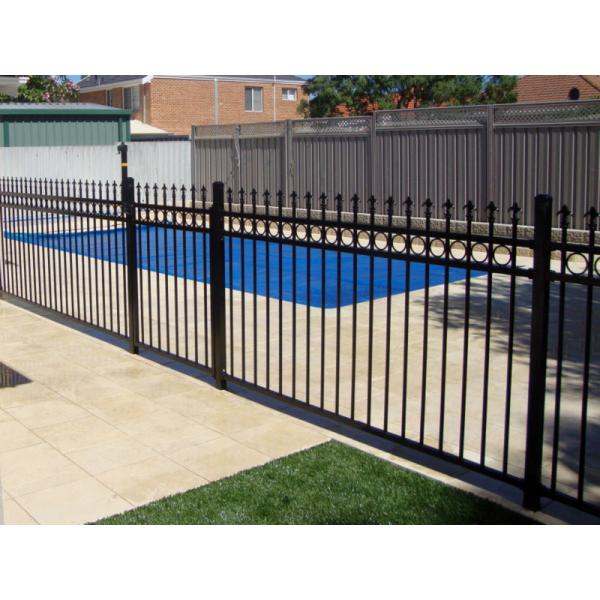

Photo Tubular Steel Fencing Panels
