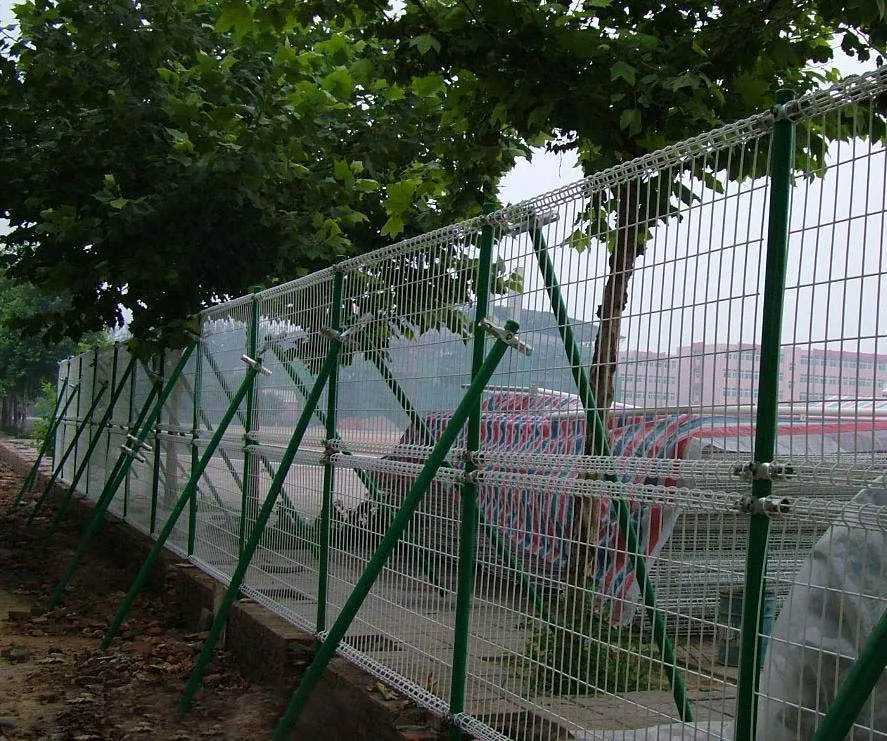

PVC Coated Double Loop Wire Fence
Double ring fence is mainly as metal fence be used for protection isolation and security of highway ,railway and bridge. Double loop welded mesh panels
The welded mesh panels of double loop fence have loop at the top and bottom edge of panel. The posts with plastic caps connect with the panels whilst retaining high rigidity. Few accessories with expand screw ensure the easy installation.
Roll top welded mesh panels
The feature of the roll top fence is acting as horizontal supports spanning between the posts. The open mesh configuration is also decorative in appearance allowing excellent through visibility.
Specification
Mesh Pattern: 150X50mm
Wire Diameter: 4.5mm-5mm
Forms of corrosion resistance include electric galvanizing, hot-dipped galvanizing, PVC spraying and PVC coating. Welded mesh panels are PVC coating after galvanizing. Color coating usually is green and white, other colors are requested.
| The Roll Top fence | | | Panels | Posts | | Fence Height m | Panel Size Height/Width mm | O/A Length | Number of Fixings Inters | Number of Fixings Corners | | 0.9 | 900 x 3000 | 1500 | 3 | 6 | | 1.2 | 1200 x 3000 | 1800 | 4 | 8 | | 1.5 | 1500 x 3000 | 2100 | 4 | 8 | | 1.8 | 1800 x 3000 | 2500 | 5 | 10 | |
| |
Other kinds as you request
The wire diameter: 1mm to 10 mm as you request
The opening size: 5cm to 20 cm as you request
The length: 1m to 6m as you request
The width: 1m to 6m or as you request
The post size: as your request
The accessories: as your request
Base for fence as your request
Application:
Used for park, private gardens and parks, playgrounds, plays areas, pedestrian zone and public restriction area, factory fencing, residence fencing or house fencing
Specifications:
Wire diameter: 2.5-6.0mm
The dipped wire diameter: 4.5-5mm
Height: 60-200cm
Mesh: 50×200mm
Hole shape: rectangle
More specifications we can accept the customized as you required.
Double ring fence is mainly as metal fence be used for protection isolation and security of highway ,
railway and bridge.
Material: Low carbon steel wire, stainless steel wire, aluminum magnesium alloy wire.
Process:welded
Surface finish:PVC coated, electronic galvanized or hot dipped galvanized.
Color:White, Blue and Green
Advantages:
(1)High strength, good rigidity
(2)Beautiful shape, broad vision
(3)Easy assemble and practical
(4)High quality with reasonable price
(5)Good integral feeling
Application:
This product is mainly used for protection isolation and security
used for highway and railway bridge on both sides of the protection zone
Used for airports, ports and terminals security
Used for municipal building in the park, lawn, zoo, pool Lake, roads, and residential segregation and protection.
Used for Hotels, supermarkets, entertainment and venues protection and decoration
Use: Wire mesh fence always be used to be Prevention for the road, railway, airport, residence district, seaport, garden, playground, school, living area, feeding and husbandry
We are the manufacturer of double loop wire fence and another type fence!
Experience of manufacturing and exporting!
Material: Low carbon steel wire, steel metal.
Weaving: welding
Treatment: electric/hot-dipped galvanizing, PE spraying and PE coating.
Property: corrosion resistance, aging resistance, sunshine resistance and weather resistance.
Specifications of wire mesh fence
| height(cm) | width | Wire Dia. | Hole Size(mm) | Bend. | Post Type | Post (mm) | Post Height(cm) |
| 103 | 200cm 225cm 250cm | 3.5mm
4.0mm
4.5mm
5.0mm
6.0mm
8.0mm | 50x50
50x100
50x150
50x200
60x120 | 2 | Square post 1 | 40x60x1.5 | 150 |
| 123 | 2 | 40x60x1.8 | 170 |
| 150 | 2/3 | 40x60x2 | 197 |
| 153 | 2/3 | Square post 2 | 60x60x1.5 | 200 |
| 170 | 3 | 60x60x1.8 | 217 |
| 173 | 3 | 60x60x2 | 220 |
| 180 | 3 | 60x60x2.5 | 227 |
| 193 | 3 | Peach post | 50x70 | 240 |
| 200 | 3/4 | 70x100 | 250 |
| 203 | 3/4 | Holland post | 48x1.5 | 250 |
| 240 | 4 | 290 |
| other special specifications can be made to order |
The post: we have a square column, tubular column, C-shaped column, steel pipe, the peach-shaped column and so on
